Beschrijving

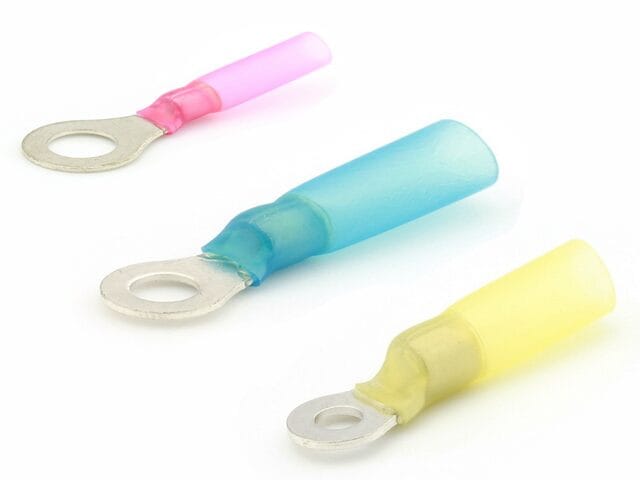

Ringkabelschoenen seal 6mm
Ringkabelschoenen 6mm seal is leverbaar in verschillende kleuren en verschillende dikte diameters. Minimale afname is 5 stuks.
Ringkabelschoen 6mm met krimpkous rood
Type Heat shrinkable
Kabeldikte 0.5mm² -1.5mm²
Type Ring Terminals
Dimensions N/B
Diameter Ø 6.5mm
Material Nylon.Copper
Max. Working Voltage 600 volt
Temperature Rating -55ºC – +105ºC
According requirements E96029/E128651/E214907/E3689/E96029/E128651/LR83574/LR131576
Ringkabelschoen 6mm met krimpkous Blauw
Type Heat shrinkable
Kabeldikte 1.5mm² -2.5mm²
Type Ring Terminals
Dimensions N/B
Diameter Ø 6.5mm
Material Nylon.Copper
Max. Working Voltage 600 volt
Temperature Rating -55ºC – +105ºC
According requirements E96029/E128651/E214907/E3689/E96029/E128651/LR83574/LR131576
Ringkabelschoen 6mm met krimpkous Geel
Type Heat shrinkable
Kabeldikte 4.0mm² -6.0mm²
Type Ring Terminals
Dimensions N/B
Diameter Ø 6.5mm
Material Nylon.Copper
Max. Working Voltage 600 volt
Temperature Rating -55ºC – +105ºC
According requirements E96029/E128651/E214907/E3689/E96029/E128651/LR83574/LR131576
